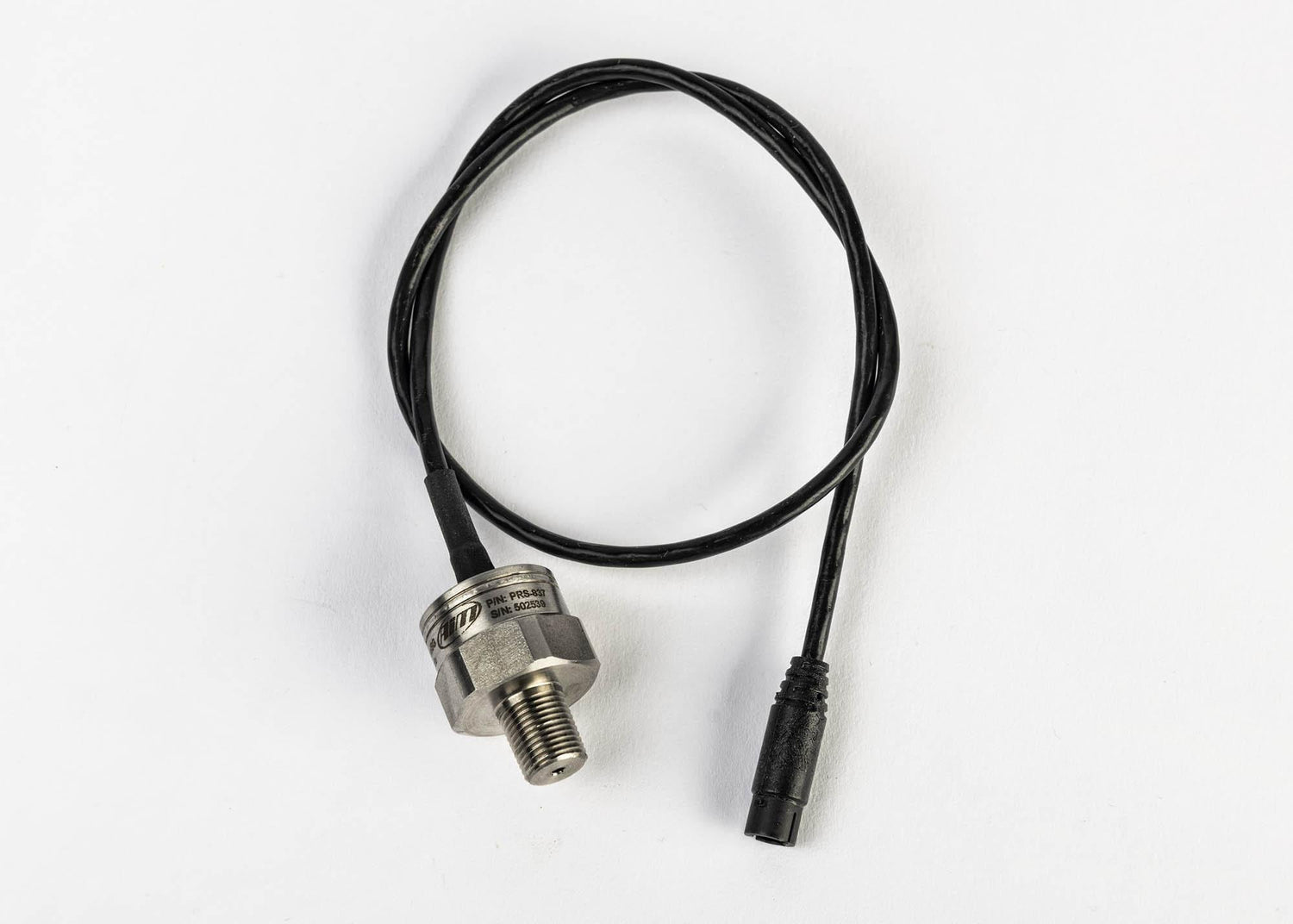

MyChron 0-2000 PSI Pressure Sensor

Records and displays on screen the pressure from 0-2000 psi. Perfect for recording brake pressure (or fuel pressure data) to tell you when the driver is on or off the brakes and how much he/she is on them.

You have to use the Channel Expansion Box 604-106 in order for this sensor to work on the Mychon 5. Plug the expansion box into the bottom data port on the Mychron 5, then tell the Mychon 5 what you have plugged into the 4 channels. For this sensor select the AIM 0-2000 PSI sensor.

To have this display on the screen you will have to add it to one of your custom view pages. Just select 0-2000 PSI sensor.

1/8" NPT to 719 4 pin connector. You can use our inline 41-09195 6AN to 1/8 NPT connector to easily add this to read fuel pressure. Or add it to the gauge port of the regulator.

Please reference the .PDF document next to the images for further setup information.
