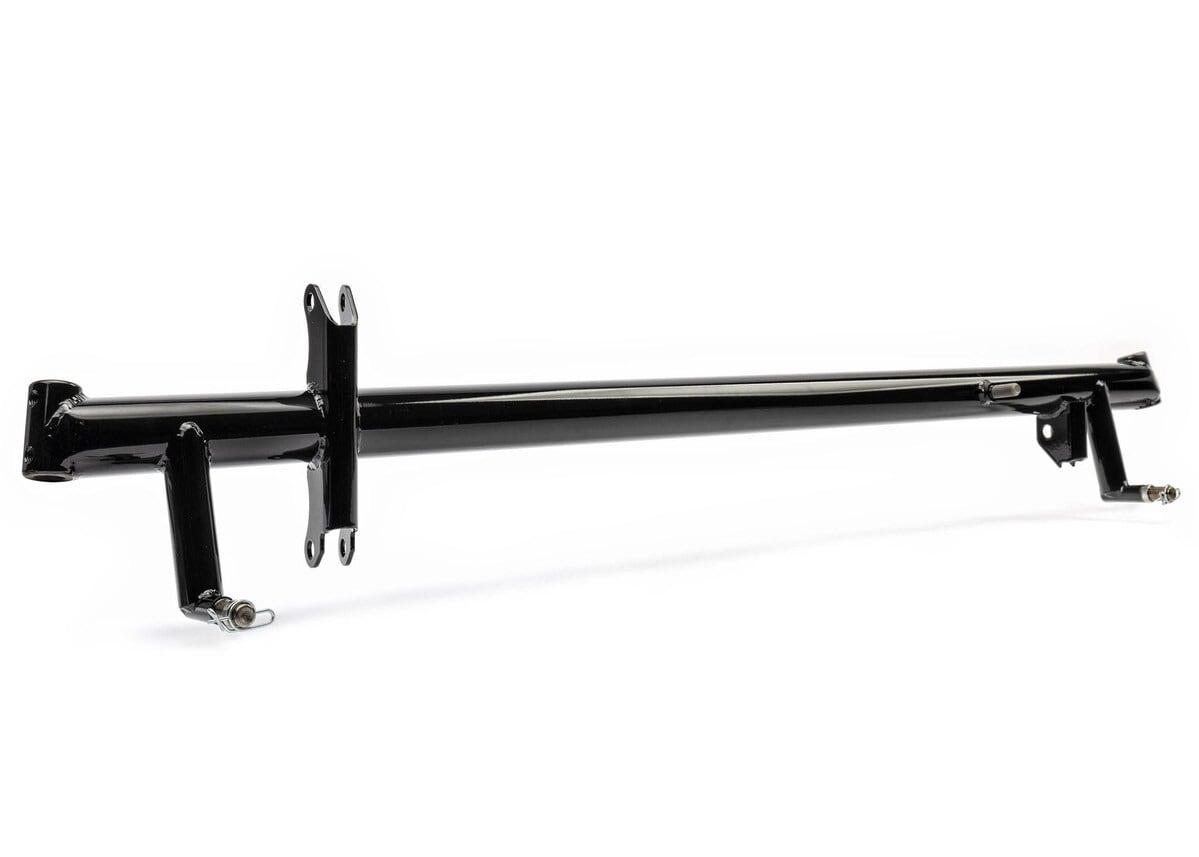

Front Axle, 42", 1-3/4" Wingless, Coil Over, 600 Micro Sprint

Hyper Racing # 016-207
This wider front axle improves entry on a wingless car.

Hyper Racing’s 1-3/4” Front Axles are constructed from the highest possible quality .083” 4130 chromoly tubing sourced from either USA or Germany. Each axle is fitted with the utmost care and attention to detail using CNC laser cut tabs and bosses and welded to perfection. Black powder coating completes the look and provides protection and durability. Front Axles include quick change threaded shock studs (2), spacers (2) and 1⁄2”-20 nylock half nuts (2). Features double shear towers for superior strength and 2.080” king pin bosses angled back for 10 degrees caster.

Threaded holes will require re-tapping of threads to remove powder coating material.

How to Measure Your Front Axle
Measure axle length from the top of the kingpin bosses, center to center, rounding up to the nearest quarter inch.

Choosing Your Front Axle
Front Axles are specified by:

• Length: See “How to Measu
