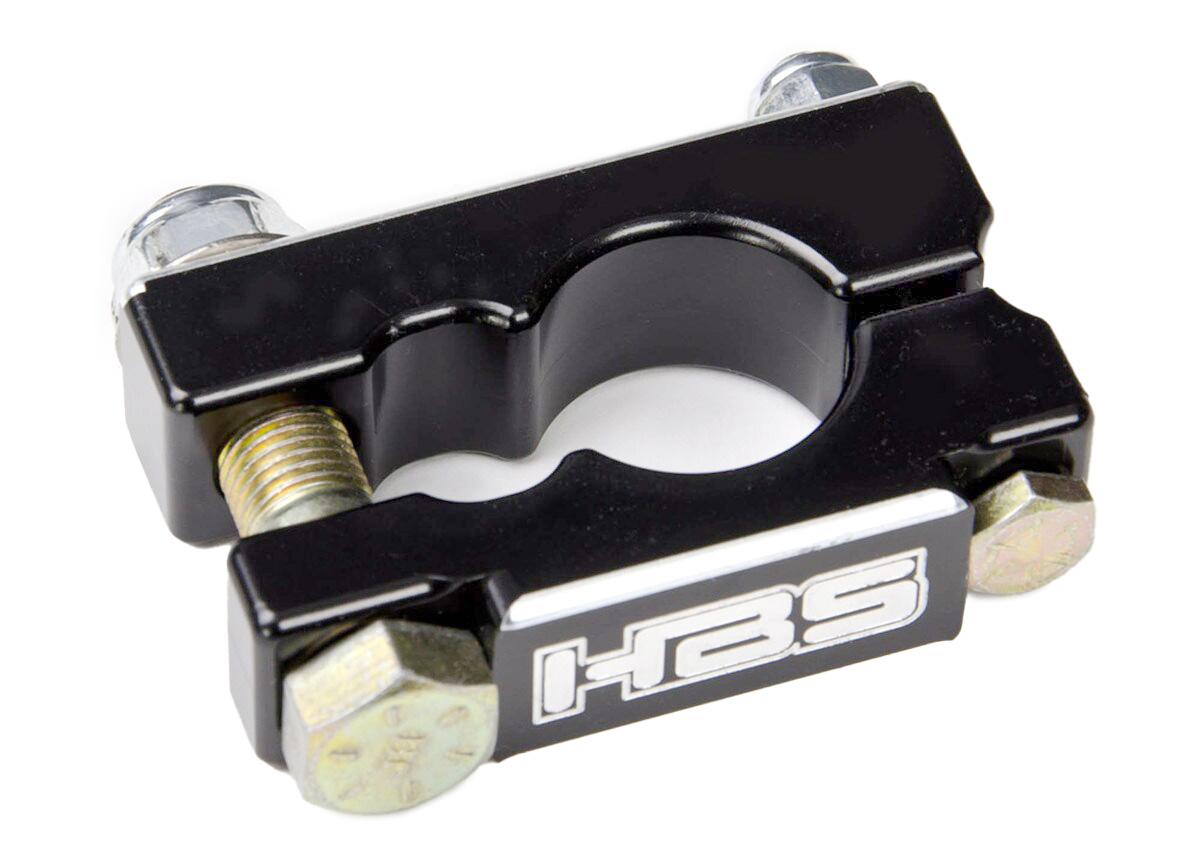

Panhard Bar Slider 1" x 7/16" Rod End

HBS design. Fits 1" Frame member and 7/16" Rod End. This is the one Hyper chassis use for the front panhard bar clamp.

Hardware:


• (1) 7/16-20 x 2” HHCS with (1) 7/16-20 nylock half nut
• (1) 1/4-28 x 2” HHCS with (1) 1/4-28 nylock full nut
• (1) 1/4" AN washer
• (1) 7/16" AN washer

In order to meet the Sharp Mini Late Model rules, you will need to replace the 7/16-20 x 2" HHCS with a 7/16-20 x 2-¼" bolt. Our part numkber 971-07-20-2.25.
