2" 2X7RPB4L Bearing Carrier 4P 9 Standard Wheelbase

Hyper Racing # 06-1255L
For 2" Splined Rear Axle. Fits the X7 Chassis on the right side. Long wheelbase, standard rear axle position configuration. Use this bearing carrier to mount the 4 piston Wilwood GP320 brake caliper 36-101 and using a panhard bar configuration. 3-1/2" brake mount bolt center distance. Used with the 9-1/4" brake rotor.

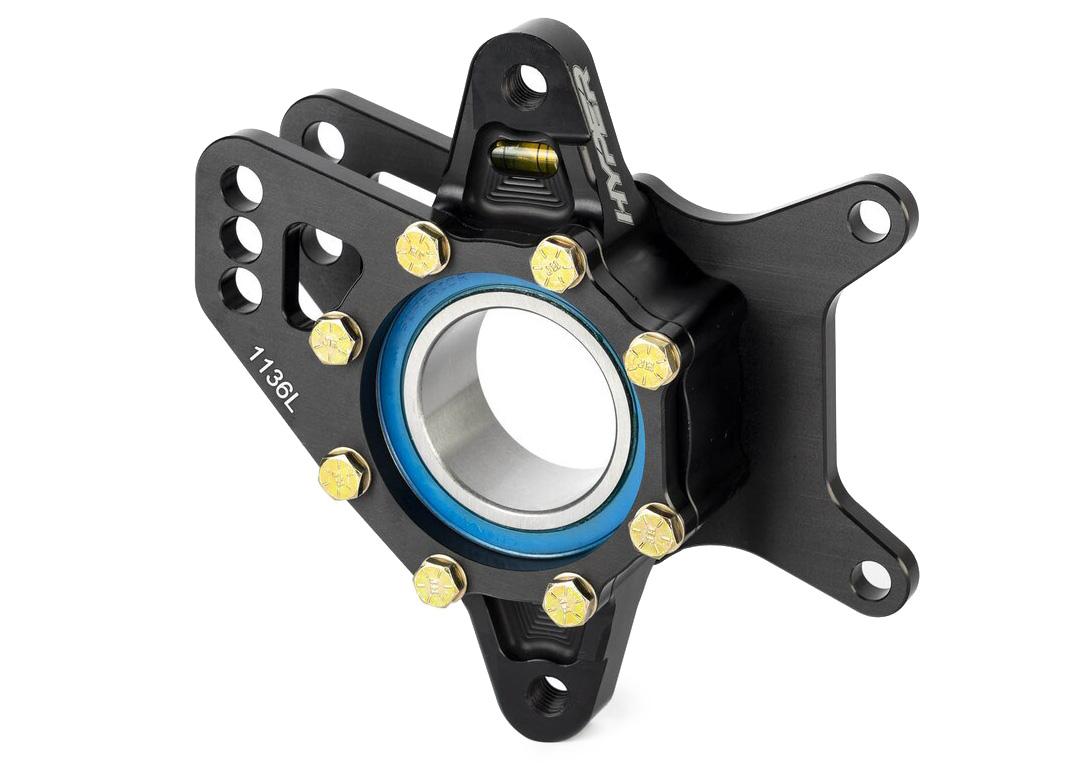

CNC machined Bearing Carrier, includes double row angular contact bearing, bubble level, and grease fitting. Control arm mount distance is 6".

We recommend the bearings be greased before the first use with Champion Grease 74-332.

Hardware:

• (8) ¼-20 x 2" HHCS with (8) ¼" AN washers



  Additional hardware not included in kit:

  • (2) 7/16-14 x 1-¼" HHCS to attach the wishbone

  • (2) 3/8-24 x 1-¼" HHCS with (2) 3/8" AN Washers and (2) 3/8" nylock half nu
