2" 2X7RPB4S Bearing Carrier 4P 9 Short Wheelbase

Hyper Racing # 06-1255S
For 2" Splined Rear Axle. Fits the X7 Chassis on the right side. Use when configuring for the short wheelbase, rear axle forward location. Use this bearing carrier to mount the 4 piston Wilwood GP320 brake caliper 36-101 and using a panhard bar configuration. 3-1/2" brake mount bolt center distance. Fits 9-1/4" brake rotor.

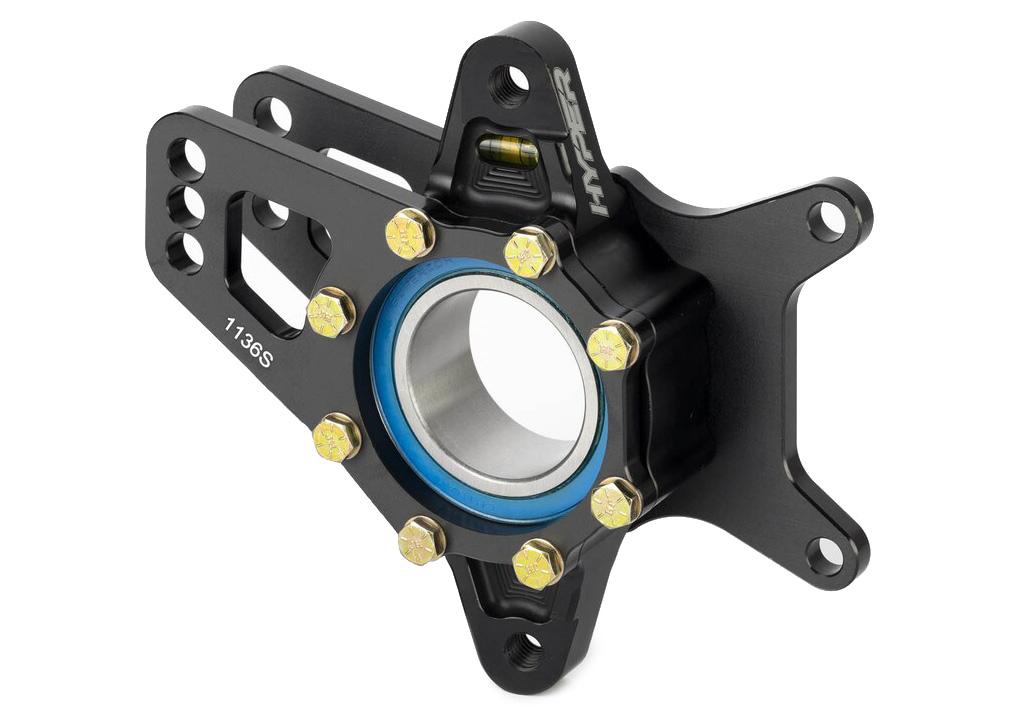

CNC machined Bearing Carrier, includes double row angular contact bearing, bubble level, and grease fitting. Control arm mount distance is 6".

We recommend the bearings be greased before the first use with Champion Grease 74-332.

Hardware:

• (8) ¼-20 x 2" HHCS with (8) ¼" AN washers



  Additional hardware not included in kit:

  • (2) 7/16-14 x 1-¼" HHCS to attach the wishbone

  • (2) 3/8-24 x 1-¼" HHCS with (2) 3/8" AN Washers and (2) 3/8" nylock ha
