Shock Travel sensor, 6" x 1/2"

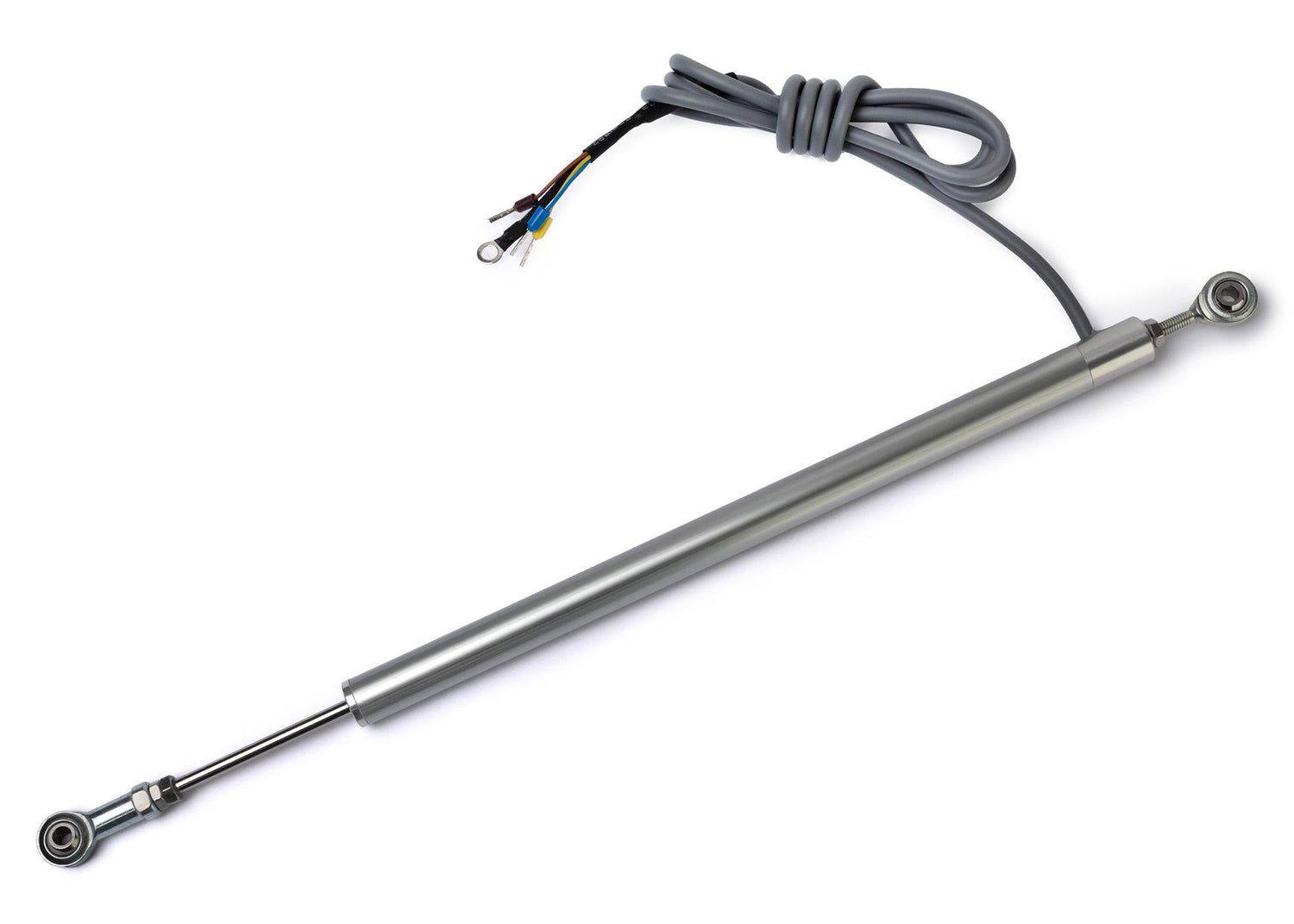

6" Shock travel sensor.

• Perfect for shock position and deriving shock velocity.
• 1/2" Diameter, 6" Stroke.
• Overall length at full compression 11" Long.
• Overall length at full extension 17" Long.
• Sensor outputs 0-5V analog signal.
• Compatible with all major dataloggers including  FuelTech.

Brown = 5V Power Circuit (From ECU or data logger.)  Blue = 0V Ground (To ECU sensor ground/data logger sensor ground Yellow = Signal Wire (Wired to input channel)  Black = Shielded Ground (If you are not using a shield, connect ring terminal to chassis or cut off and heat shrink back.)

Calibration: After installing your shock travel sensor, you will need to set up your data acquisition device. Every system is different however; the basic configuration is common. For systems that already have shock sensors
